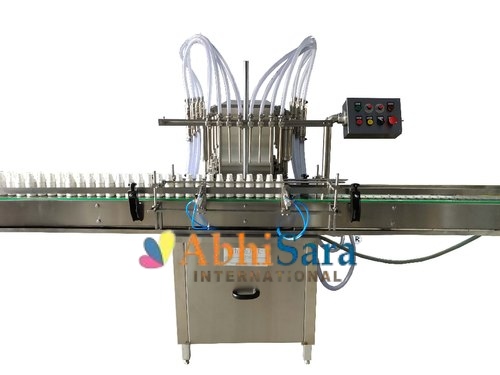

Glass Bottle Liquid Filling Machine works on volumetric principle with diving nozzles. The unit is made compact, versatile, and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is the standard feature of the machine. The main drive of the machine and conveyor drive consists of A/c Motor with synchronized variable A/c Frequency Drive.
- Containers moving on SS Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container.
- To minimize foaming adjustable nozzle will reciprocate according to filling dose, the nozzle will go upwards slowly from the bottom level of bottle towards the neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.
|Power Consumption||2.2 kW|
|Capacity||50 ml to 1000 ml|
|Filling Head||6 head|
|Machine Capacity||60-1000 bottles/min|
