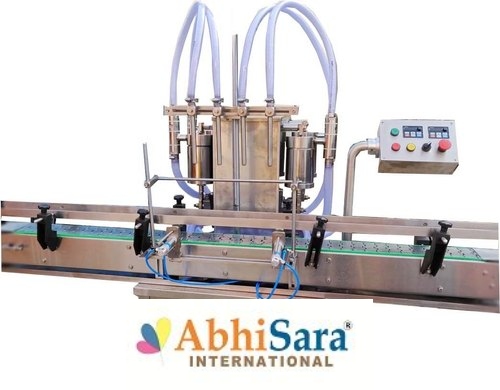

Bottle Filling Machine is a compact and highly efficient machine with an elegant look. This multi-functional multi-featured machine meets the GMP requirements of filling for glass, plastic, or Aluminum bottles. The flow of liquid is measured and converted into electronic signals being controlled by microcomputer-based circuitry. Minimum adjustment required to set different capacities from 500ml to 5 Ltr with varying containers. The entire range can be set on the same machine without any change parts with help of flow meter pulses.
Operation:
- Nozzle goes upwards slowly from the bottom level of bottle towards the neck during filling to minimize forming an adjustable nozzle is reciprocating according to filling dose
- The filling synchronized with conveyor drive and conveyor drive controlled by Ac frequency drive. The speed can be set in terms of bottles per minute. The conveyor drive consists of a hollow shaft, geared motor controlled by Ac frequency drive. A knob can set the speed of conveyor.
Product Details:
| Filling Range | 500 to 5000 ml |
| Power Consumption | 2.5 kW |
| Material | SS |
| Machine Capacity | 60-240 bottles/min |
| Driven Type | Electric |
| Machine Type | Automatic |
| Dimension | 3200 x 1250 x 2600 mm (L x W x H) |
| Voltage | 230 V |
| Filling Accuracy | 0.2 to 0.5% |
| Frequency | 50 Hz |
