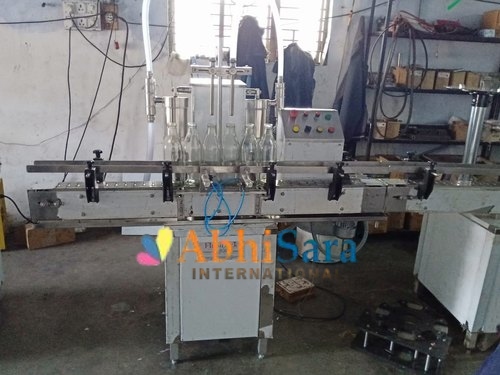

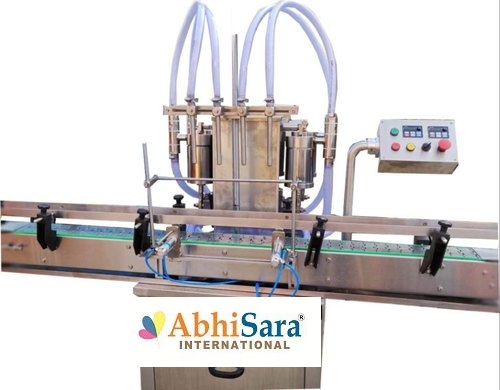

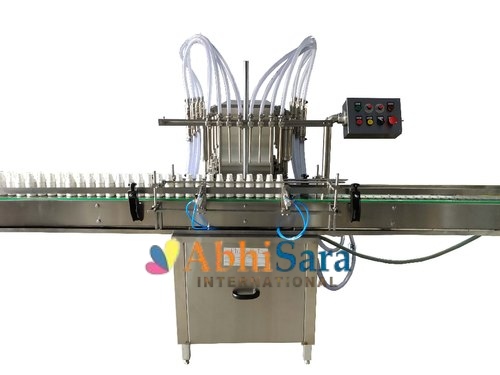

Liquid Bottle Filling Machine

Abhisara International Liquid Bottle Filling Machine works on volumetric principle with diving nozzles. The unit is made compact, versatile and enclosed in stainless steel elegantly matt finish body, consists of S.S. Slat Conveyor, Reciprocating Nozzle with self-centering devices & SS Syringe. No container No filling system arrangement is standard features of the machine. The main drive of the machine and conveyor drive consist of A/c Motor with synchronized variable A/c Frequency Drive.

Operation:

  • Containers moving on SS Slat conveyor, feed below the filling nozzles through a settable twin pneumatically operated stopper system. The twin pneumatically operated stopper system and reciprocating nozzles can precisely match for centering of container below nozzles, to avoid spillage of liquid on container. To minimize foaming adjustable nozzle will reciprocate according to filling dose, nozzle will go upwards slowly from bottom level of bottle towards neck during filling. The dosing block with a hexagonal bolt fitted below syringes. This means fill size can be easily set.

Salient Features:-

  • ┬▒1 % Filling accuracy on single dose.
  • No Bottle No Filling System.
  • All Contact Parts made of S.S.316
  • Rigid vibration free construction for trouble free performance
  • S.S. Elegantly matt finished body.
  • Minimum charge overtime, from one size to another container or fill size.
  • Self-lubricating UHMW-PE guide profile for S.S. slat chain provides low friction wear surface, smooth and noiseless conveying.
  • Bottle Stopping arrangement through Pneumatic system.
  • Synchronized two nos. A/c drives for main motor & conveyor belt.
  • Safety guard for conveyor gearbox, motor and pneumatic cylinders.
  • Inbuilt protection against over current, voltage fluctuation, short circuit in A/c frequency drive.
  • Total GMP model.

Product Details:

Filling Range50 ml to 1000 ml
Power Consumption1.2 kW
Filling Head4 Head
MaterialStainless Steel
Usage/ApplicationFood Industries
Driven TypeElectric
Machine TypeAutomatic
Dimension1800 x 950 x 1800 mm L x W x H).
Frequency50-60 Hz
Voltage280 V
